Every workflow can have an app interface: a screen with forms, tables, media, and custom components that sits on top of the workflow’s logic. You build it in the Interface tab (shortcut I) in the canvas top bar, next to the Workflow tab (shortcut W).

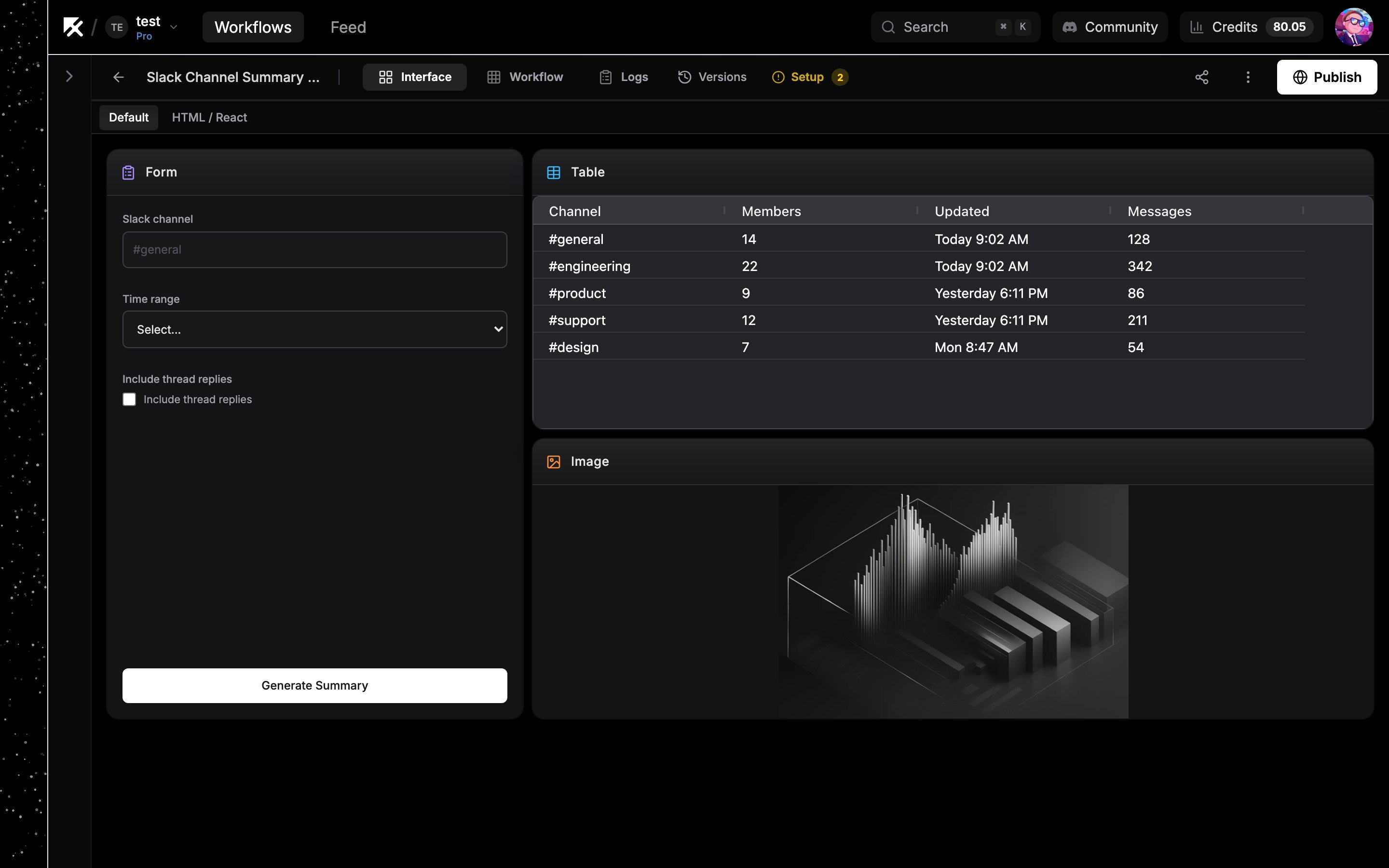

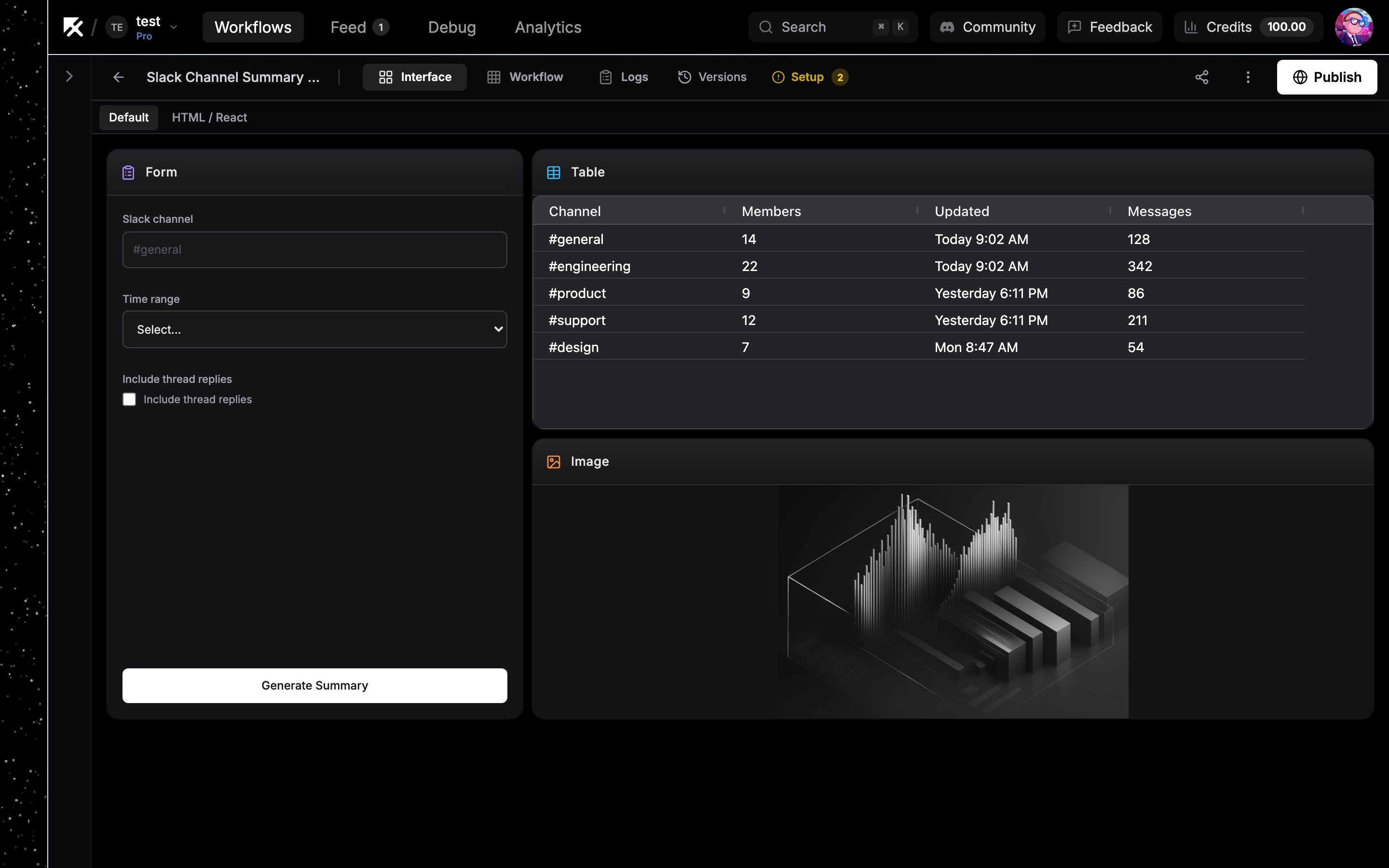

Interface tab showing blocks arranged on a grid

​
Blocks are interface nodes

The Interface tab and the canvas are two views of the same thing. Every block on the grid is an interface node on the workflow canvas:
  • Dropping a block onto the grid creates the matching node on the canvas.
  • Deleting a block removes its node, and deleting the node removes the block.
  • Connecting workflow nodes into an interface node feeds the block data. An image block wired to an image generation node shows the generated image after a run.
Drag a block from the palette onto the grid, or click it to add it. See Interface blocks for what each block does.

​
The grid

Blocks sit on a free-form grid. Drag a block to move it, drag its edges to resize it, and the grid prevents overlaps by pushing neighbors out of the way. On narrow screens the grid reflows to fewer columns so blocks wrap instead of shrinking.

​
Fullscreen blocks and tabs

Some blocks take over the whole view instead of sitting on the grid:
  • HTML / React blocks are fullscreen by default. Set the block’s Fullscreen option to No to place it on the grid instead.
  • Agent Chat blocks (an agent node with Show in Interface enabled) are always fullscreen.
When you mix fullscreen blocks with grid blocks, a tab bar appears: a Default tab for the grid plus one tab per fullscreen block. Click the active tab’s name to rename it, and drag tabs to reorder them. A single fullscreen block with an empty grid fills the view directly, with no tab bar.

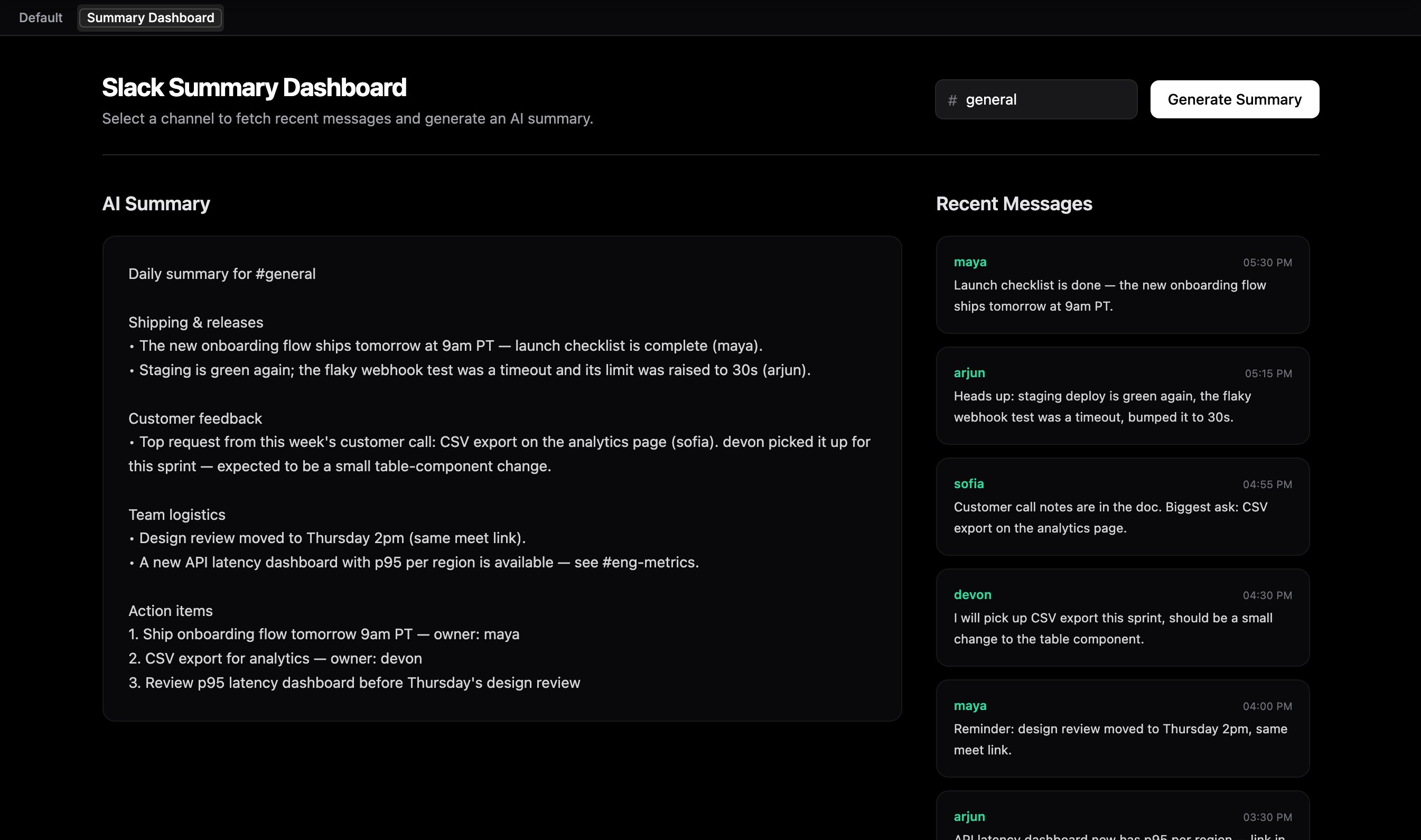

Fullscreen HTML/React block with tab bar showing Default and component tabs

​
Next steps

Interface blocks

Reference for every block type and its configuration.

Custom components

Build fully custom React UIs with the HTML / React block.

Publish to the web

Put your app on a public noclick.app subdomain.

Build an app with AI

Let the AI builder generate the interface for you.
